Removing the interior mirror
Preliminary works
- Remove the interior mirror COVERS .
NOTE:
TECHNICAL INFORMATION
Carry out the work at temperatures between 18°C and 23°C only.
Carry out the work at temperatures between 18°C and 23°C only.

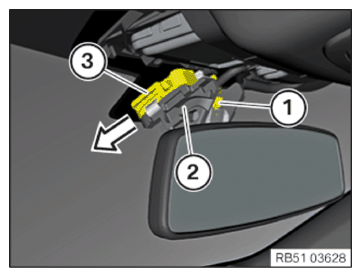

- Unlock plug connection (1) and disconnect.
- Jerk and pull off the interior mirror (2) in the direction of the arrow from the mirror base (3).
