Remove both rear inner door sill cover strips
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Remove rear entrance cover strip

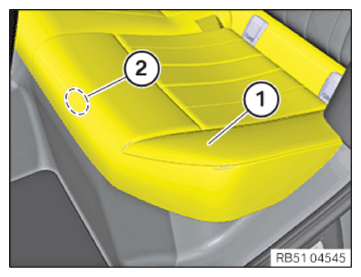

- Release the rear seat (1) in area (2) in upward direction from the detents.
NOTE:
RISK OF DAMAGE
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
- Place special tool directly beside the mounting clip.
- Continue unclipping the part without using the tool if possible.
- Raise the rear seat (1) slightly.

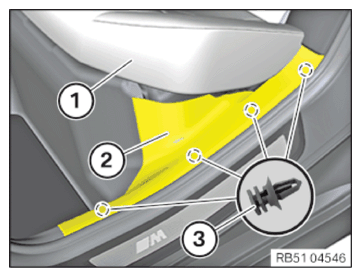

- Release the rear door sill cover strip (2) upward from the clips (3) and remove.
