Remove exhaust system

• Unlock connector (1).
• Disconnect the connector (1) of the exhaust flap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock connector (1).
• Disconnect the connector (1) of the exhaust flap (2).

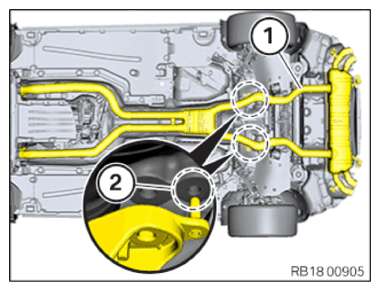

• Use a suitable jack to secure the exhaust system (1) from falling down. If the exhaust system is drained while under tension, there is the risk that the retaining bolts (2) will break.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen nuts (1).

• Loosen screw (1).
• Lower holder (2) of the exhaust bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Lay ground strap to one side.
• Loosen screw (3).
• Lower holder (2) of the exhaust bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Version A:

  Loosen nuts (1).

• Slide circlips (2) to the rear.
• Guide out and remove the exhaust system with the help of three persons.
• Remove the exhaust system towards the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

Loosen union nut (1).

• Version B:

Loosen union nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

Release nuts (1).

• Version B:

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1).

• Guide out and remove the exhaust system with the help of three persons.
• Remove the exhaust system towards the rear.

Courtesy of BMW OF NORTH AMERICA, INC.
