51 16 080 Removing and installing or replacing sun visor and left or right counter support (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove sun visor
Remove sun visor

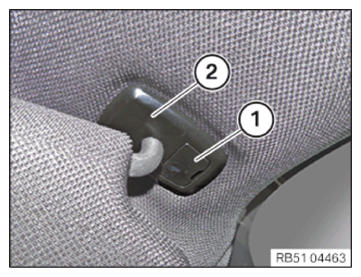

Pull out the cover (1).
Detach the sun visor (2) from the counter support.
Disengage the sun visor (2) in front to the bottom and thread it out of the headlining at the rear.
Unlock associated plug connection and disconnect.
