51 16 080 Removing and installing or replacing sun visor and left or right counter support (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the counter support for the sun visor
Remove the counter support for the sun visor

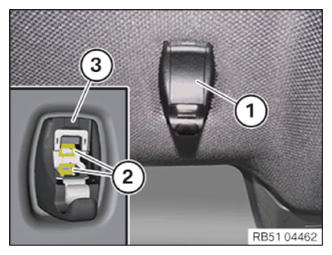

Pull out the cover (1).
Push the clamps (2) together and pull the counter support (3) out of the headlining.
