Remove output shaft
Remove output shaft
Courtesy of BMW OF NORTH AMERICA, INC.
Secure output shaft against falling out.

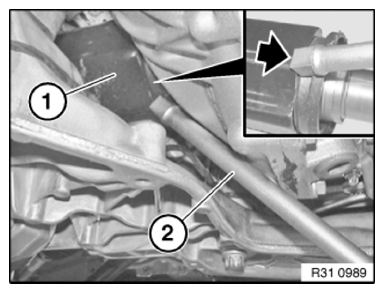

Position the aluminum mandrel (2) at the output shaft (1) (arrow).
Knock out the output shaft (1) out of the front axle transmission or the bearing bracket with the aluminum mandrel (2).

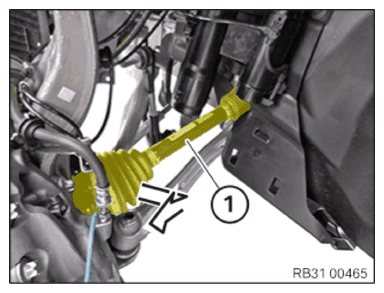

Remove the output shaft (1) in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
