Installing front propeller shaft at the front axle transmission

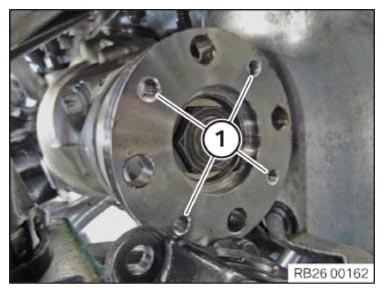

- Before installing the prop shaft on the front axle transmission, all the 4 threads (1) in the drive flange must be cleaned and free from possible residues and contaminations.
- Replace screws.
Parts: Screws

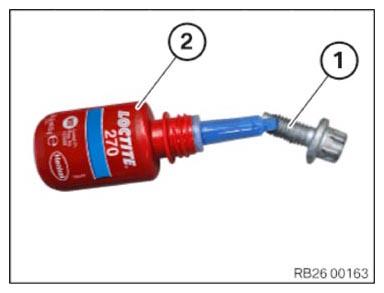

- A drop of Loctite 270 (2) must be given before the screw connection on each thread at the end of the respective screw (1).
CONSUMABLE DESCRIPTION
| High-strength screw lock, Loctite 270 | 10 ml, Tube | 83 19 2 210 337 |
NOTE:
TECHNICAL INFORMATION
After the screw connection of the front prop shaft, a 30 minute hardening time must be ensured before the vehicle is operated again.
After the screw connection of the front prop shaft, a 30 minute hardening time must be ensured before the vehicle is operated again.

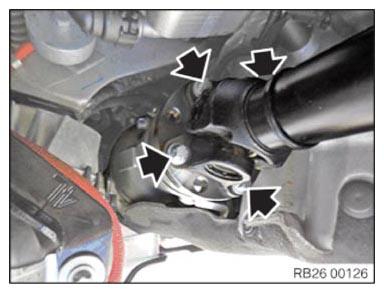

- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Prop shaft before the front axle differential | |
| Replace screws. Joining torque and angle of rotation must be observed without fail. |
Joining torque 20 Nm Angle of rotation 45° |
