Removing the cover on the charge air cooler
Removing the cover on the charge air cooler

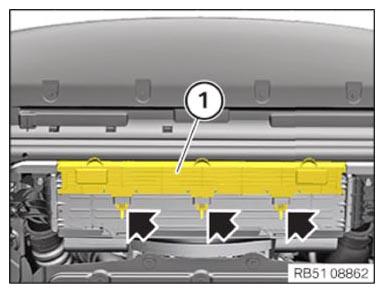

Release the cover (1) from the detents (arrows) and feed it out from the charge air cooler and remove it.
