Removing the cover on the ornamental grille at side left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.

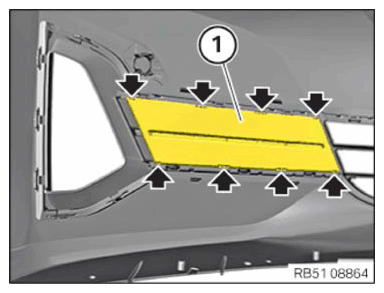

- Release the cover (1) at the detents (arrows) and remove it.
