Removing the engine from the installation position
Lowering the engine and detaching the engine bridge

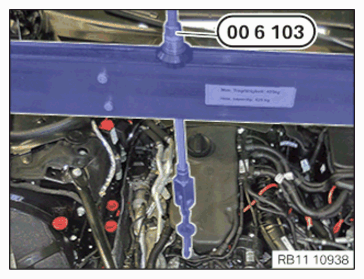

- Turn the special tool (spindle) 2 361 506 (00 6 103) to lower the engine until it is positioned completely flat on the engine mounts.
- Remove the engine bridge with the help from another person.

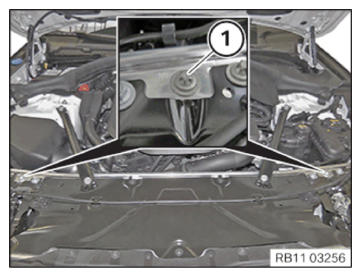

- Tighten screws (1) left and right.
TIGHTENING TORQUES SPECIFICATION
| Top rear connection to body | |
| Torx screw M8x30 | tightening torque 19 Nm |
Fasten the left and right engine support arm on the engine mount
NOTE:
Description is for left component only. Procedure on the right side is identical.
Attaching the engine support bracket to the engine mount
NOTE:
TECHNICAL INFORMATION
Lower the engine completely to prevent play before bolting down the engine mount and the engine support bracket.
Lower the engine completely to prevent play before bolting down the engine mount and the engine support bracket.

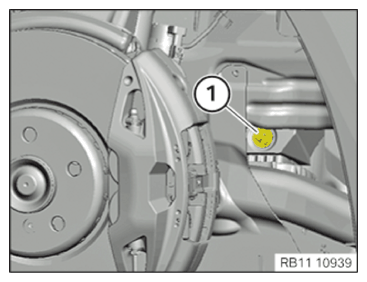

- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Engine mount to engine support bracket | |
| M12 | tightening torque 100 Nm |
