Removing the right spindle drive partially
Removing the right spindle drive partially

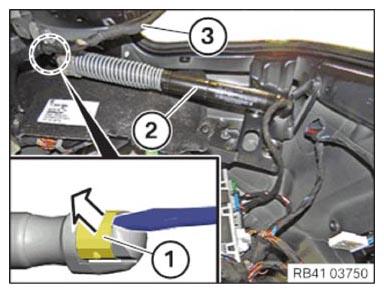

Lift the clamp (1) with a screwdriver slightly in the arrow direction.
Lift off ball socket (2) of the spindle drive from ball pivots.
Unclip wiring harness (3) from tailgate hinge.
Courtesy of BMW OF NORTH AMERICA, INC.
