Disconnect the plug connections on the left and the right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Disconnect plug connections

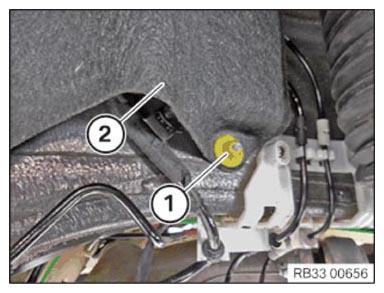

- Unfasten nut (1).
- Bend the wheel arch trim panel (2) to the side.
Courtesy of BMW OF NORTH AMERICA, INC.
|

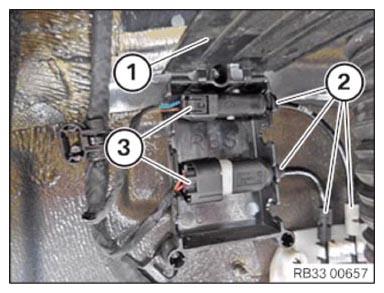

- Unlock and open the lid (1).
- Detach the lines (2) from the holders.
- Unlock and disconnect the plug connections (3).
Courtesy of BMW OF NORTH AMERICA, INC.
|
