Disconnecting the front active stabilizer

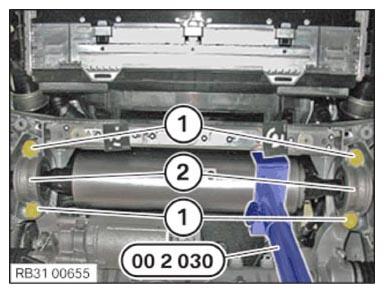

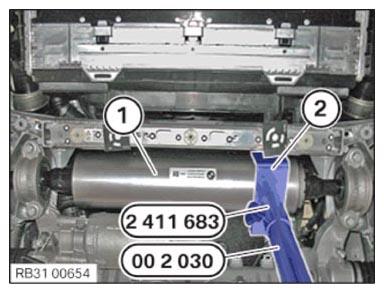

- Carefully support the active stabilizer (1) using the universal jack 0 490 133 (00 2 030)
, the special tool 2 411 683
and the adapter (U-profile) (2).
Use the adapter (U-profile) (2) from the set of special tools 2 184 136 .

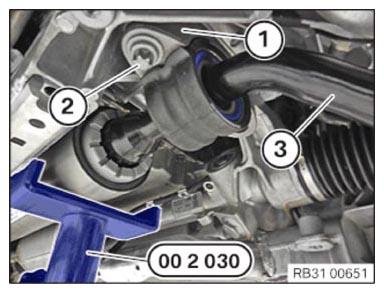

- Loosen screws (1).
- Remove the anti-roll bar bracket lower part (2) on the left and right.
- Secure the anti-roll bar bracket upper section (1) on the left and right using screw (2).
- Tighten the screw (2) the left and right hand-tight.
- Lower the active stabilizer (3) using the universal jack 0 490 133 (00 2 030)
a maximum of 20 mm.
It is essential to ensure that the active stabilizer is not lowered by more than 20 mm (risk of component damage)!
