Installing tank cover
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
NOTE:
Description is for left component only. Procedure on the right side is identical.

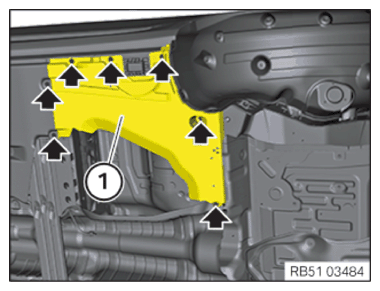

- Insert the tank cover (1).
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Undershield | |
| screw | Tightening torque 2.6 Nm |
| Plastic nut | Tightening torque 2.6 Nm |
