Partially remove the left luggage compartment wheel arch trim panel

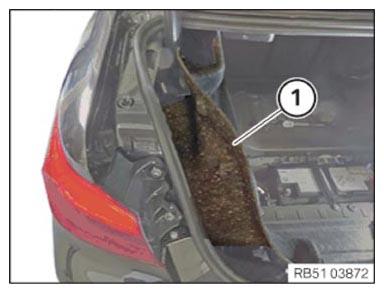

• Remove the cover (1) towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

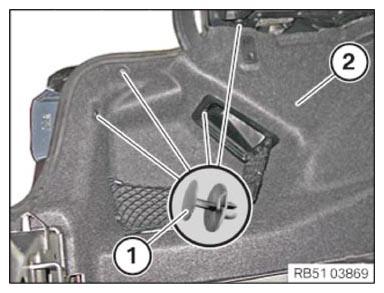

• Remove the expanding rivet (1) on the luggage compartment wheel arch trim panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lever the cover (1) out and unscrew the bolt below it.
• Remove the lashing point (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Partially remove the luggage compartment wheel arch trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.
