Preserving the front door
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

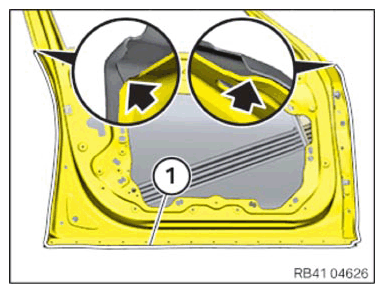

- The inner door panel is welded with the door outer skin in the area (1).
The weld seam must be protected against corrosion by cavity sealant.
- Preserve the inner door panel in the area of the weld seam (1).
- Apply cavity sealant up to the two marked ends.
Remove any cavity sealant which emerges.
NOTE:

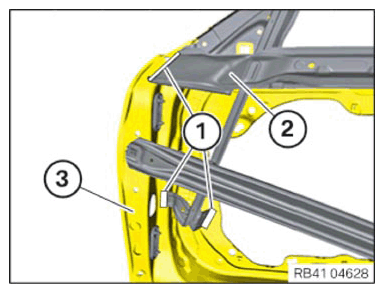

To provide a better overview: Shown without door outer skin.
- Preserve the weld seams (1) all round between the reinforcement (2) and inner door panel (3).

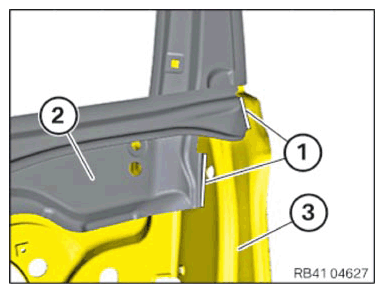

To provide a better overview: Shown without door outer skin.
- Preserve the weld seams (1) all round between the reinforcement (2) and inner door panel (3).
