Removing the integrated supply module (PDM) partially

Prerequisite

Engine control unit has been removed.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .

Courtesy of BMW OF NORTH AMERICA, INC.

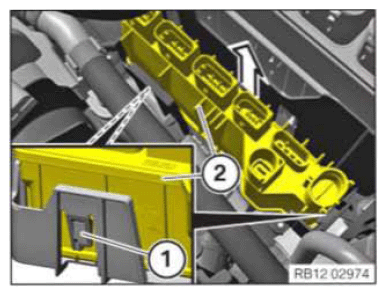

Unlock the locks (1).
Slide out and remove the integrated power supply module (PM) (2) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
