Installing front-end strut on left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the front-end strut

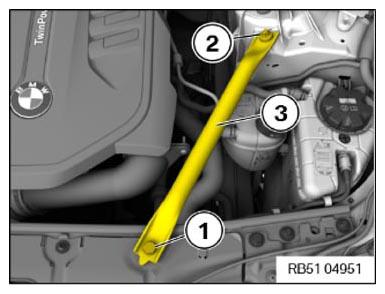

- Install the front-end strut (3).
NOTE:
RISK OF DAMAGE
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.
- Only use a standard tool (e.g. reversible ratchet) to release/tighten the screws.
- Clean the thread at shock tower.
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Front-end strut to cross connection | |
| Hexagon screw Replace screw. |
Joining torque 28 Nm Angle of rotation 90° |
- Replace the screw (2).
Parts: Screw
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Front-end strut/strut brace | |
| Screw Replace screw. |
Tightening torque 56 Nm Angle of rotation 90° |
- Repair the damaged thread on the shock tower with a Helicoil insert.
CONSUMABLE DESCRIPTION
| Helicoil thread insert | M10x30 mm 07129909659 |
