Partially installing the charge air line

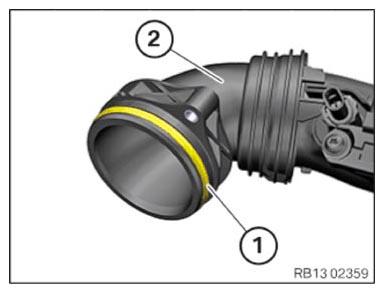

• Check the sealing ring (1) on the charge air line (3) for damage and replace, if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

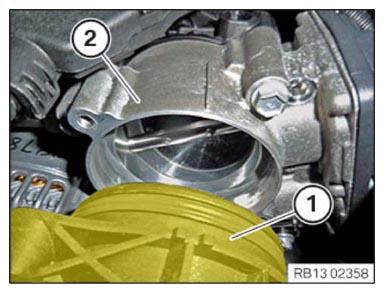

• Connect the charge air line (1) to the throttle valve (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (3).

• Connect connectors (2) and lock.

  The connector (2) must engage audibly.

• Connect connectors (1) and lock.

The connector (1) must engage audibly.
