Partially installing the integrated power supply module (PDM)

Prerequisite

Engine control unit has been removed.

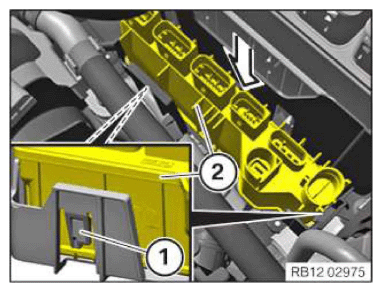

• Insert and install the integrated power supply module (PDM) (2) in the direction of the arrow.

  The detents (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

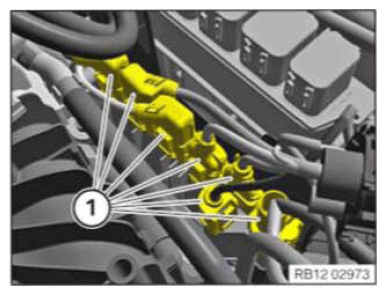

• Connect connectors (1) and lock.

The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
