Prepare the assembly jig

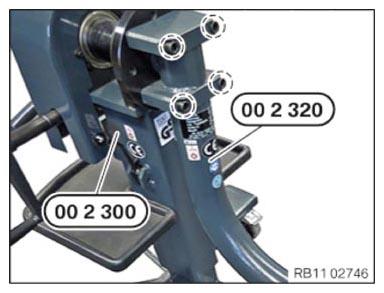

- Install and fasten special tool 0 495 196 (00 2 320) on special tool 0 495 187 (00 2 300) .
TIGHTENING TORQUES SPECIFICATION
| Engine mounting bracket on assembly jig | |
| M14 x 95 | Tightening torque 130 Nm |

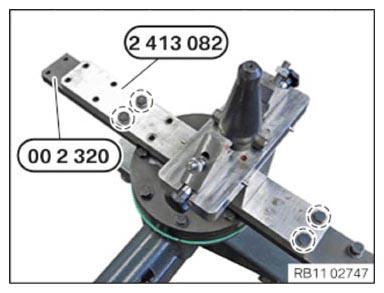

- Position and fasten special tool 2 413 082 on the special tool 0 495 196 (00 2 320) as shown.
TIGHTENING TORQUES SPECIFICATION
| Engine mount to engine mounting bracket | |
| Hexagon screws from special tool set | Tightening torque 105 Nm |
