Removing the fuel hose
Removing the fuel hose
Protect the ignition coils from escaping fuel with a cloth.

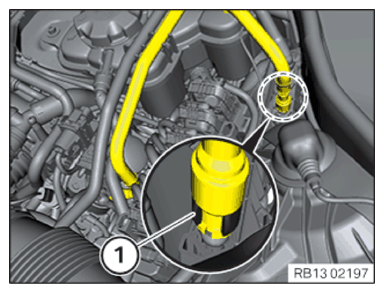

Unlock and disconnect the fuel hose on the retaining clip (1).
Courtesy of BMW OF NORTH AMERICA, INC.

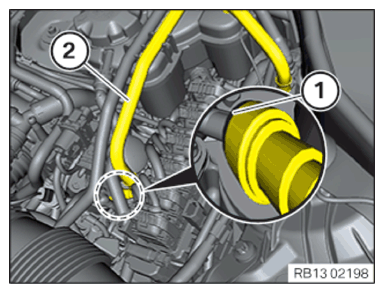

Unlock and disconnect fuel hose (2) on the retaining clip (1).
Remove fuel hose (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
