Connecting the connector to the wastegate valve controller of cylinders 1 to 4
Connecting the connector to the wastegate valve controller of cylinders 1 to 4

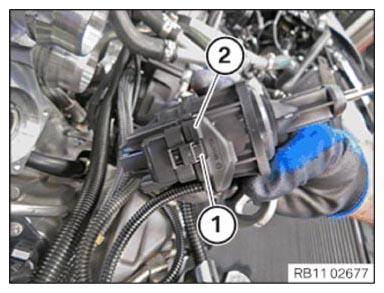

Connect connector (2).
The lock (2) must engage.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
