Install upper heat shield
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
- Position heat shield.

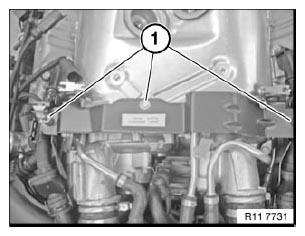

- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Heat shield to heat shield | |
| M6 | Tightening torque 10 Nm |

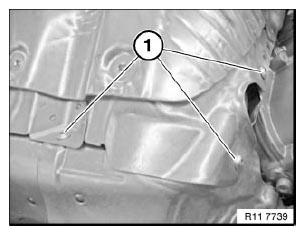

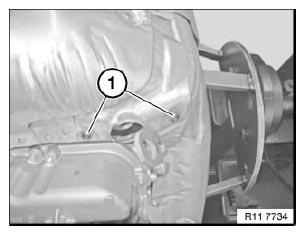

- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Heat shield to heat shield | |
| M6 | Tightening torque 10 Nm |

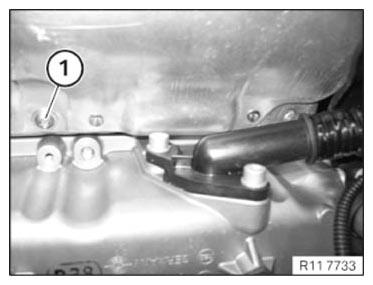

- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Heat shield to heat shield | |
| M6 | Tightening torque 10 Nm |

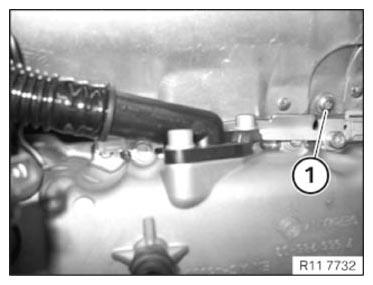

- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Heat shield to heat shield | |
| M6 | Tightening torque 10 Nm |
- Position holder.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Holder for acoustic cover to cylinder head cover | |
| M6 | Tightening torque 10 Nm |
