Installing piston with connecting rod

Aligning piston rings

Aligning piston rings

Courtesy of BMW OF NORTH AMERICA, INC.

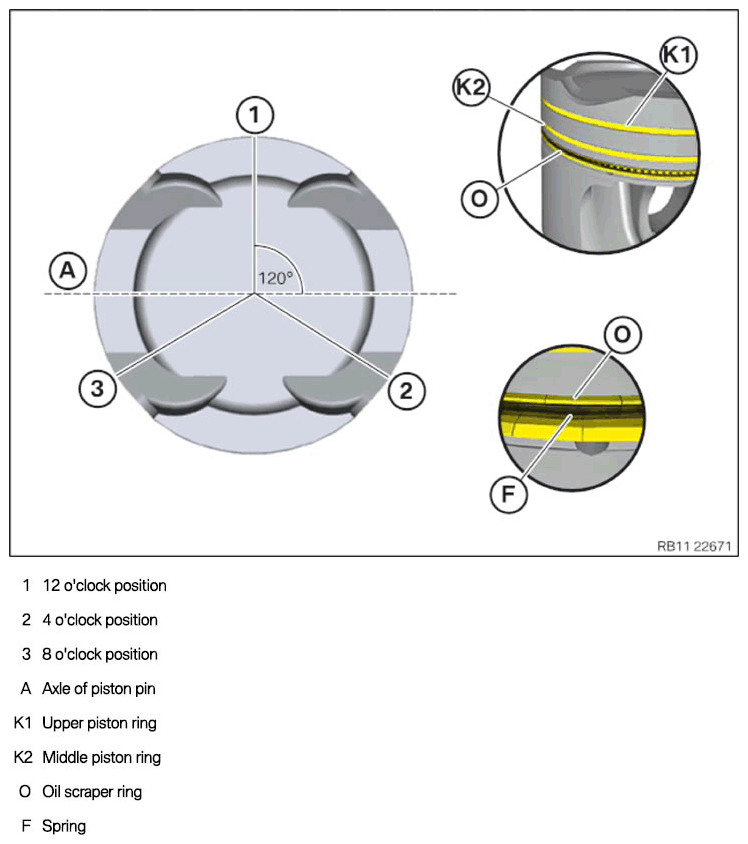

• Align the contact points of all piston rings rotated by 120° each.

Do not position contact points over axis of piston pin (A).

Piston ring	Alignment
Lower oil scraper ring (O3)	12 o'clock position (1)
Spring (O2)	4 o'clock position (2)
Upper oil scraper ring (O1)	8 o'clock position (3)
Central piston ring (K2)	12 o'clock position (1)
Upper piston ring (K1)	4 o'clock position (2)

• Make sure that the contact point on the oil scraper ring does not overlap.

  Courtesy of BMW OF NORTH AMERICA, INC.

• For N63M3 installation is only permitted in the following combinations of connecting rod bearing shells (1).
  • Vehicles up to 03/31/- 2019 yellow blue
  • Vehicles up to 03/31/2019 green - red
  • Vehicles up to 04/01/2019 green - red
  • Vehicles up to 04/01/2019 blue - yellow
• For N63T3 installation is only permitted in the following combinations of connecting rod bearing shells (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Red - Blue
  • Green - Yellow
• For S63T4 installation is only permitted in the following combinations of connecting rod bearing shells (1).
  • Green - Brown
• Insert the connecting rod bearing shell (1) into the connecting rod bearing cap and secure it with the retaining lugs (see arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the Irox coated connecting rod bearings (1) into the connecting rod bearing cap and secure it with the retaining lugs (see arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Maintain conditions of absolute cleanliness.
• Do not clean the crack surfaces (1) with compressed air.
• Vacuum off any new connecting rods off prior to the installation. with a commercial vacuum (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Screw special tools 2 249 164  into the threading in area (1) of the connecting rod.

Courtesy of BMW OF NORTH AMERICA, INC.

• Connecting rods and connecting rod bearing caps are denoted with the same pairing letters (1), do not mix them up.

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the piston (1) and connecting rod at the crankcase.
• The arrows (1) on the piston and connecting rod bearing cap must point in the driving direction to the timing chain (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Compress special tool 0 494 310 (11 7 280)  (2) until the piston (1) can be installed into the crankcase.

  Piston rings must not get caught.

  Rotate crankshaft at central bolt if necessary.

• Remove special tools 2 249 164  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the crankshaft (2).

• Insert connecting rod bearing cap so that the matching letters (3) are on the same side.
• Tighten connecting rod bolt using special tool 0 490 504 (00 9 120)  .

Connecting rod bolts, for new connecting rod

M9x1.25 Screw. Suction off crack surfaces.

Joining torque  5 Nm Joining torque  20 Nm Joining torque  30 Nm Angle of rotation  75°

Courtesy of BMW OF NORTH AMERICA, INC.

Screw connection, for new connecting rod bolts only
M9x1.25 Replace screws. Suction off crack surfaces.	Tightening torque  5 Nm Tightening torque  20 Nm Tightening torque  30 Nm Angle of rotation  75° Unscrew all bolts.  180° Tightening torque  5 Nm Tightening torque  20 Nm Tightening torque  30 Nm Angle of rotation  75° Unscrew all bolts.  180° Tightening torque  5 Nm Tightening torque  20 Nm Tightening torque  30 Nm Angle of rotation  75°

Checking the side clearance of the connecting rod bearing

• Install special tool 0 493 143 (11 6 250)  on the crankcase.
• Press both connecting rods (1) up to the stop.
• Set dial gauge 0 493 143 (11 6 250)  to 0.
• Press both connecting rods (1) to the stop and read out the values.

Courtesy of BMW OF NORTH AMERICA, INC.
