Partial removal of coolant expansion tank

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: RISK OF DAMAGE
Injectors contaminated with coolant.
Damage to and failure of injectors that were coated with coolant for an extended period.

Covering injectors with suitable auxiliary materials before testing or topping up the coolant is mandatory.
Covering injectors with suitable auxiliary materials before working on the cooling system in the area of the injectors is mandatory.
If necessary, draw off all of the coolant from the coolant expansion tank.
Always clean injectors or injector shafts contaminated with coolant (e.g. with compressed air).

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Use commercially available disconnection tools to pinch off the coolant lines.

Courtesy of BMW OF NORTH AMERICA, INC.
Use commercially available syringe (1) or suitable tool to draw off coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen sealing cap (1).
Draw off coolant using standard pump from the coolant expansion tank (2) and dispose of it.
Disconnect the coolant hose (3) from the coolant expansion tank (2).
Unlock and loosen holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Equipment specification with gasoline particulate filter:
Feed the cable (1) out of the brackets toward the front.

Remove the rear bonnet seal (2) from the guide toward the inside.

Courtesy of BMW OF NORTH AMERICA, INC.
Equipment specification with gasoline particulate filter:
Loosen screws (1).
Carefully slide the coolant expansion tank (2) upwards and to the front.

Courtesy of BMW OF NORTH AMERICA, INC.
Equipment specification with gasoline particulate filter:
Release the screws (1) several thread starts.

Lift the holder of the GPF (2) upward and out of the guide.
Thread out coolant expansion tank (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

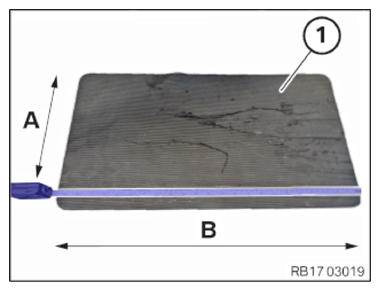

Prepare a standard waterproof rubber mat (1).

Letter:	Dimension in cm
A	32.00
B	52.00

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Illustrated on the S63T4:
Unclamp the coolant hoses with clamping pliers (3).
Raise coolant expansion tank (2).
Position the rubber mat (1) between the expansion tank and the cylinder head cover.
Unclip the fuel lines in area (4) from expansion tank (2).

Courtesy of BMW OF NORTH AMERICA, INC.

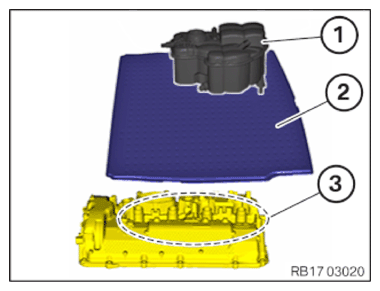

Ensure that the rubber mat (2) covers the areas between expansion tank (1) and the cylinder head cover in the area of injector shafts (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Thread out coolant expansion tank (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Only flexible hose pipes may be disconnected.
Disconnect the coolant hoses (1) with standard disconnection tools (arrows).
Unlock and release coolant line (1).
Catch and dispose of escaping coolant.
Unlock plug connection (2) and disconnect.
Disconnect clamp (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Illustrated on the S63T4:
Seal the connections to the coolant expansion tank with seal plugs (1) part number 17 12 8 515 062.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Illustrated on the S63T4:

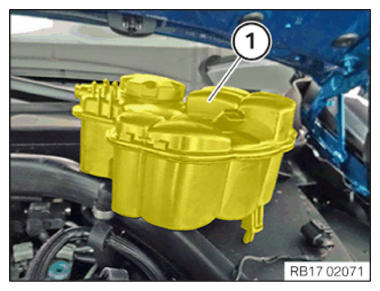

Set coolant expansion tank (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Injectors contaminated with coolant.
Damage to and failure of injectors that were coated with coolant for an extended period.
- Covering injectors with suitable auxiliary materials before testing or topping up the coolant is mandatory.
- Covering injectors with suitable auxiliary materials before working on the cooling system in the area of the injectors is mandatory.
- If necessary, draw off all of the coolant from the coolant expansion tank.
- Always clean injectors or injector shafts contaminated with coolant (e.g. with compressed air).
Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
Swirling dirt particles caused by compressed air.
Injury hazard!
- Collect dirt particles, e.g. when blowing out, use cloth to do so.
- Wear safety goggles.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
Check the injector shafts for coolant residues (1).
If there are coolant residues (1) in the injector shaft: Clean the injector shafts with an air gun (2).
