Partially disengage the fuel supply line

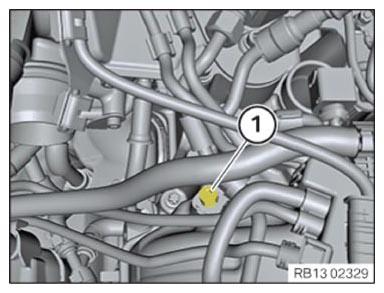

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
On releasing high pressure line, fuel may emerge at high speed.
Injury hazard!
- Wear suitable personal protective equipment.
- Before performing any installation work, allow cooling system to cool down to less than 40°C.
- Note warnings on cylinder head cover.
Courtesy of BMW OF NORTH AMERICA, INC.

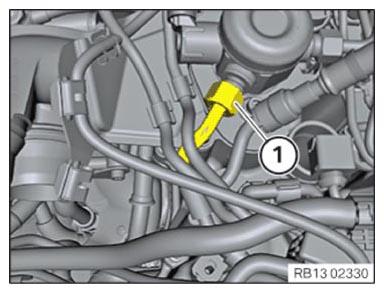

Release the fuel supply line (1).
Place the fuel supply line to one side.

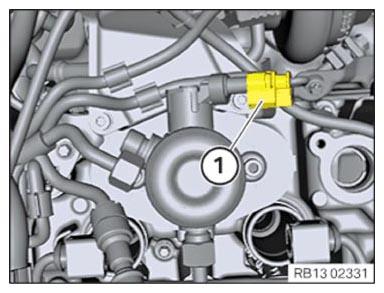

Unlock and disconnect the plug connection of the high pressure pump (1).

G14425720

Courtesy of BMW OF NORTH AMERICA, INC.
