Partially undoing wiring harness from right cylinder head cover

NOTE: RISK OF DAMAGE
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.

• Screw all screw points of the cable ducts on again. Some of the screw points are also grounding points.

• Unlock the locks (1).
• Remove the cover (2) in an upwards direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen nuts (1).
• Remove positive battery cables (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

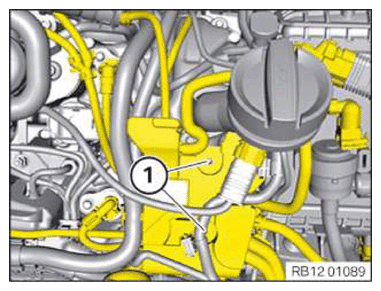

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

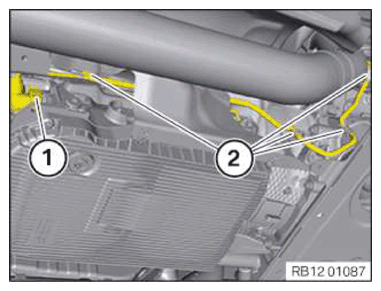

• Unlock connector (1) and remove from transmission.
• Detach the cable from the clamps (2) and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

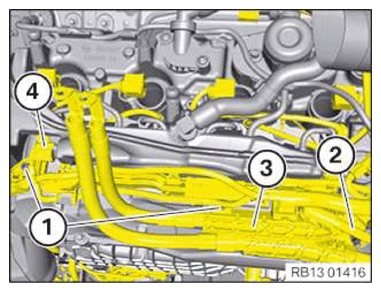

• Loosen screws (1).
• Loosen the nut (2) and remove the ground cable.
• Loosen ground pin underneath and unscrew.
• Place positive battery cables, together with the cable clip (3), to one side.
• Unlock connector (4) and detach from the rail pressure sensor.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
• Unlock and disconnect the connectors (2) from the injectors with a small slotted screwdriver (1).
• Unlock the lock in the direction of the arrow with a small slotted screwdriver (1). Disconnect the connector (2) on the connector housing from the injector.

  Courtesy of BMW OF NORTH AMERICA, INC.

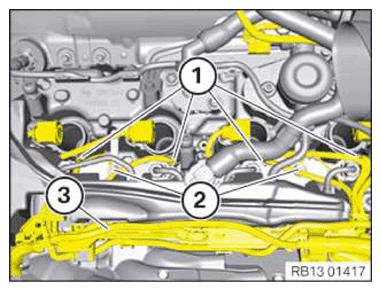

• Unlock and detach connector (1) from injectors.
• Release nuts (2) and remove ground cable.
• Loosen the wiring harness (3) and put to one side.
