Install side airbag on front seat
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00... SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .

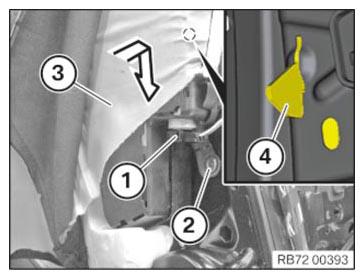

- Feed side airbag in the arrow direction into the backrest frame and the upholstery pocket (3).
- Make sure the guide (4) is positioned correctly.
- Replace the blind rivet (2).
Parts: Blind rivet
- Secure the side airbag using the blind rivet (2).
- Unlock plug connection (1) and disconnect.

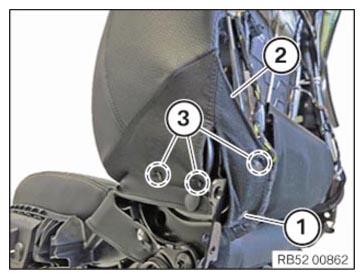

- Attach the backrest cover (2) in this area (3).
- Insert the clip (1).
- Attach the backrest cover (1) in the signaled area.
