Install steering column shroud lower section

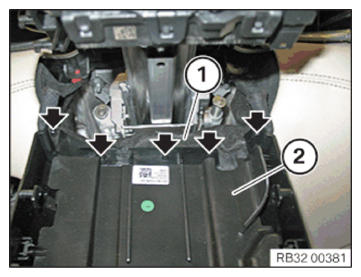

- Clip in the gap cover (1) into the steering column shroud lower section (2) (arrows).

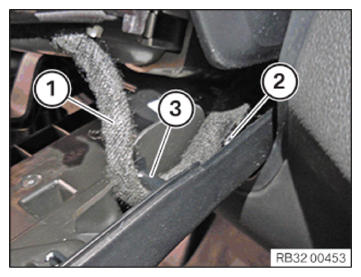

- Secure the wire (1) to the holder (2).
- Feed the line (1) into the guide (3).
- Connect connectors (2) and lock.

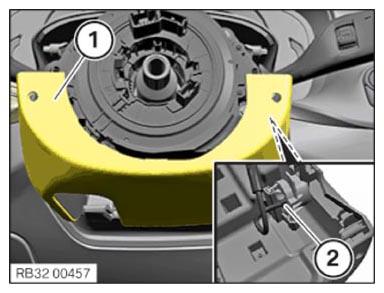

- Position steering column shroud lower section (1).NOTE: Perform the steps on the right and left side.

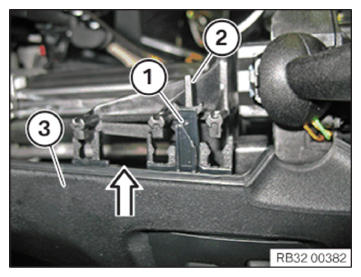

- Align the steering column shroud lower section (3) to the steering column using the retaining lug (2).
- Push the steering column shroud lower section (3) upwards in arrow direction until the lug (1) locks with the retaining lug (2).
