Install the backrest cover with the cushion for the front seat

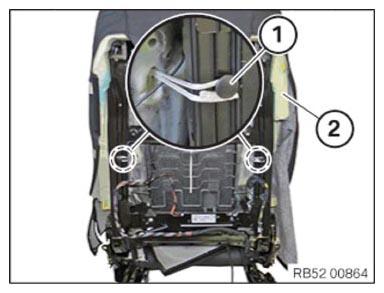

• Position the backrest covering with cushion (2) over the backrest frame from the top.
• If necessary, insert the associated wiring harness.
• Secure the clips (1).
• Check that the backrest cover with the cushion (2) is correctly positioned on the backrest frame.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the backrest cover (1) between the seat cushion and backrest towards the rear.
• Insert the welt of the backrest cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the backrest cover (2) in this area (3).
• Secure the clip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

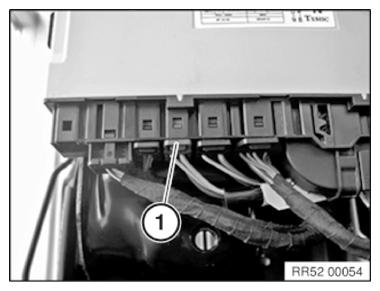

• Feed in the cable into the seat mechanism.
• Connect the connector (1) for the seat heating.

  Courtesy of BMW OF NORTH AMERICA, INC.

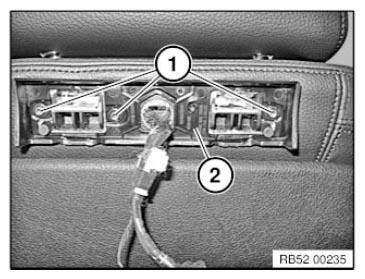

• Version with rear-cabin monitor:

  Fit the trim (2).

  Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Rear-compartment display holder trim to backrest structure
Screw	tightening torque  2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
