Install the decorative trim for the M leather steering wheel (SA710)

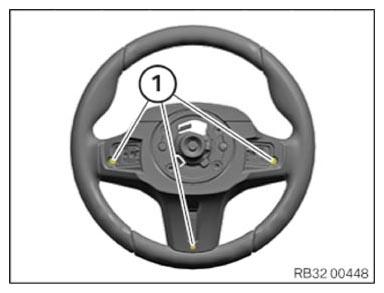

• Check the detents (1).

  The detents (1) must not be damaged or missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

• For vehicles with heated steering wheels or contact detection:

  Connect connector.

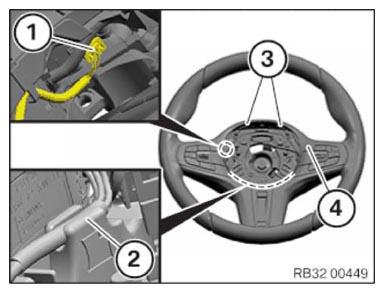

• Carefully clip in the decorative trim (4) at the detents (3).
• Insert the cables into the cable clips (2).
• Connect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

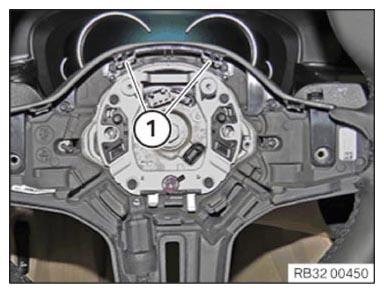

• Tighten screws (1) on the rear of the M leather steering wheel.

TIGHTENING TORQUES SPECIFICATION

Steering wheel decorative trim
Screw TS5x12	tightening torque  1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
