Remove cupholder

Preliminary works

• Remove the center armrest STORAGE COMPARTMENT .
• Remove the CENTER ARMREST .
• Release the center console trim from the CENTER CONSOLE

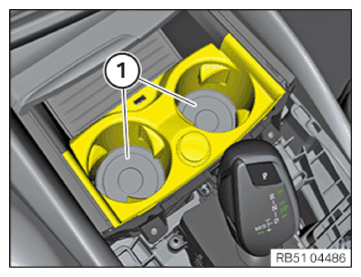

• Remove the insert (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

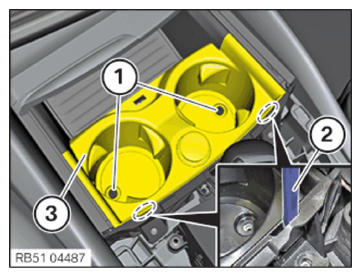

• Loosen screws (1).
• Position the screwdriver (2) in the marked areas and release the latch mechanisms behind them.
• Feed the cup holder (3) out to the top.
• Unlock associated plug connections and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
