Removing rear underbody protection

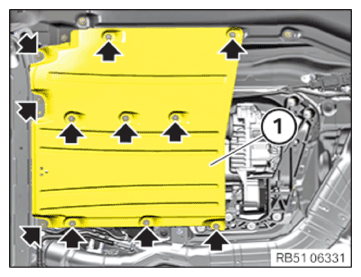

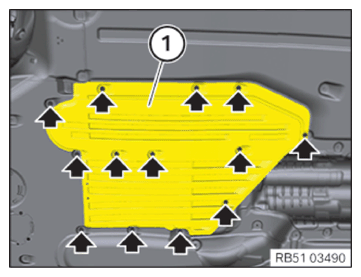

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Remove screws (arrows).

Feed out and remove the rear underbody protection (1).

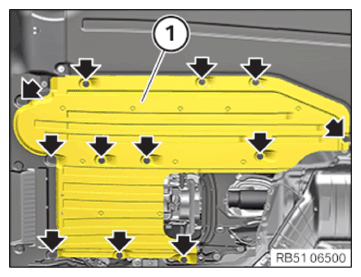

G14196341Courtesy of BMW OF NORTH AMERICA, INC.
