Removing all holders for the grab handles
NOTE:
TECHNICAL INFORMATION
Observe the tips to replace the blind rivet.
For additional information see: REPLACING BLIND RIVETS .
Observe the tips to replace the blind rivet.
For additional information see: REPLACING BLIND RIVETS .
NOTE:
The description is for one component only. The procedure is identical for all further components.

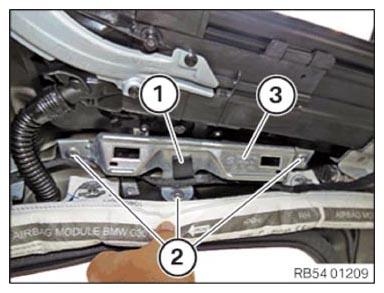

- Loosen the cable clip (1).
- Drill out rivet (2).
- Remove the holder (3).
