Removing the cover in the engine compartment on the rear left or right

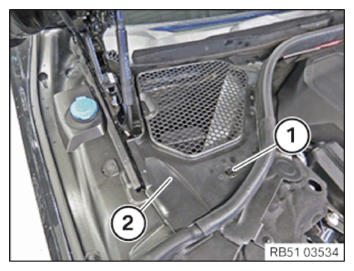

Removing the cover in engine compartment at the rear left
- Loosen the lock (1).
- Remove the cover (2).
Removing the cover in the engine compartment at the right rear
- Loosen the lock (1).
- Remove the cover (2).
Covering the vehicle battery
WARNING:
Unprotected battery terminals.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Cover the vehicle battery.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

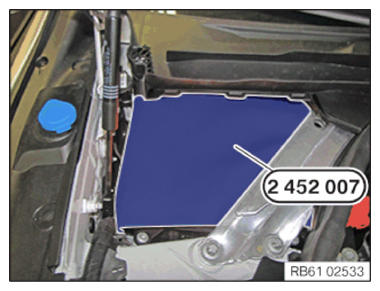

- Cover the vehicle battery with the special tool 2 452 007 as shown.
