Secure rear left and right brake caliper

NOTE: Description is for left component only. Procedure on the right side is identical.

Secure rear brake caliper

Detach and remove the special tool 2 413 317 .
Do not hang the brake caliper (1) from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

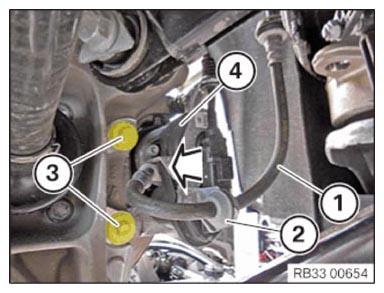

Position the brake caliper (4) on the wheel carrier in the arrow direction.
Make sure that the brake hose is not twisted when positioning.
Replace screws (3).
Parts: Screws

Tighten down screws (3).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Brake anchor plate to rear wheel carrier
M12 Replace screw.	Tightening torque 130 Nm
