Securing the front active stabilizer

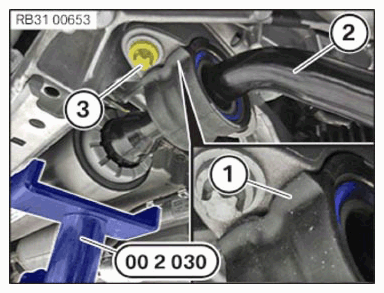

Correctly align the rubber mounts (1) on the right and left .
Carefully lift active stabilizer (2) with the universal jack 0 490 133 (00 2 030) .
Position the active stabilizer (2) at the anti-roll bar bracket upper section on right and left.
Undo screw (3) right and left .

Courtesy of BMW OF NORTH AMERICA, INC.
Position anti-roll bar bracket lower part (2) on right and left.
Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Anti-roll bar to front axle support
M12 Replace screws.	Joining torque 100 Nm Angle of rotation 45°
