Removing the grab handle
NOTE:
Description is for left component only. Procedure on the right side is identical.

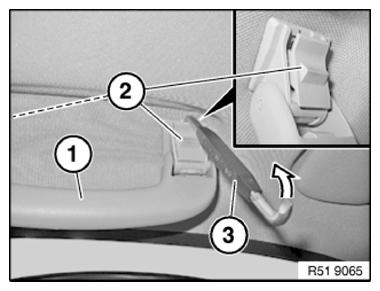

- Expand the grab handle (1) towards the bottom.
- Disengage and remove the locking insert (2) with an angle screwdriver (3) as shown.
- Pull the grab handle (2) slightly towards the inner side and hold it.

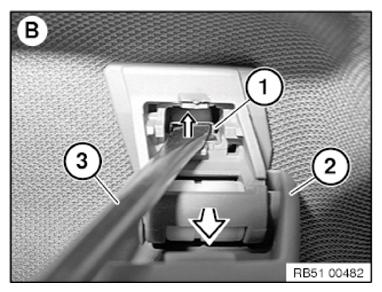

- Release the release tab at the bottom and top (1) with a suitable screwdriver (3) in the direction of arrow.
- Guide the grab handle (2) out.
- Repeat the operation on the other side of the grab handle (2).
