If installed: Remove the silencer of the stationary heating
Remove the front section of the front wheel arch cover
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
- Remove screws (arrows).
- Guide out the front section (1) of the front wheel arch cover.

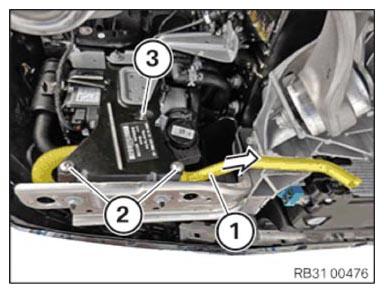

Remove the silencer of the stationary heating
- Unscrew the nut (3) by 2 to 3 turns.
- Detach the silencer (1) from the auxiliary heater.
- Loosen screws (2).
- Remove the silencer (1) from the auxiliary heater in the direction of the arrow.
