Install head restraint on front seat

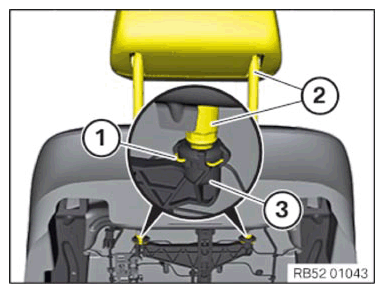

- Slightly spread the clamps (1) and pull the head restraint (2) from the drive (3).
Replace the drive for the headrest height adjustment (3) as soon as the head restraint is removed.
- Remove the head restraint (2) upwards out of the backrest.

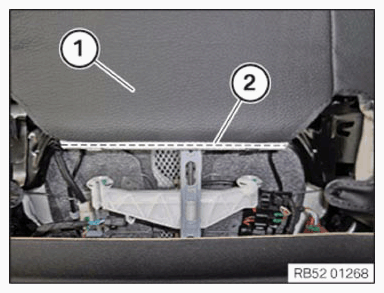

- Detach the cover of the backrest (1) in the area (2) and fold up.

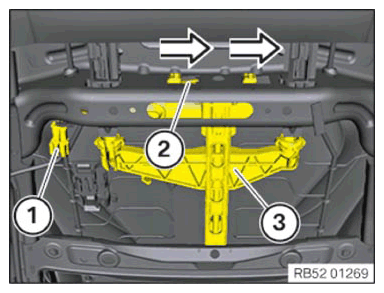

- Disconnect plug connection (1).
- Unlock the retaining lug (2) and shift the drive (3) in the direction of the arrow.
- Feed out the drive for the headrest height adjustment (3) downwards.
