Detach the top left and right wishbone from the swivel bearing
NOTE:
Perform the steps on the right and left side.

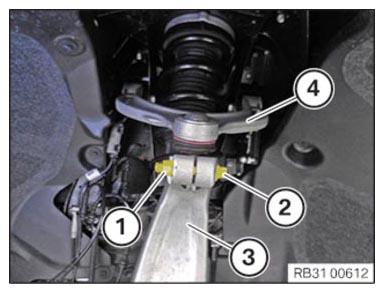

Detach the upper wishbone from the swivel bearing
- Unfasten nut (1).
- (2) Pull out screw.
- Detach the wishbone (4) from the swivel bearing (3).
