For equipment with external radiator or stationary heating system: Remove front bumper cover

Removing front bumper cover

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

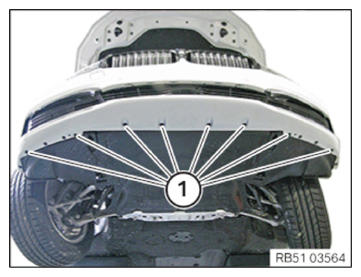

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

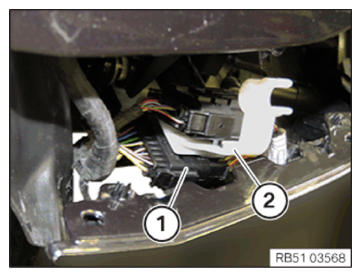

Unlock plug connection (1) on the right and disconnect.
Detach plug connector (1) from holder (2).
Unlock and disconnect the hose for the headlight cleaning system.
Lay hose at the top and fix in place.
This prevents washer fluid from being emitted.

Courtesy of BMW OF NORTH AMERICA, INC.

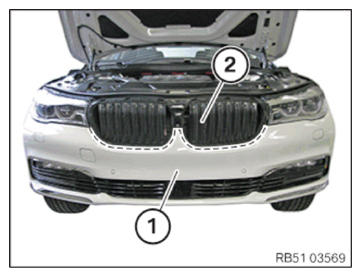

Undo the bumper cover (1) in the area of the active air-flap control (2) from the attachments.
Pull bumper cover (1) forward slightly and, if necessary, unlock and disconnect additional plug connections.
Remove bumper cover (1) towards front.

Courtesy of BMW OF NORTH AMERICA, INC.
