Install bearing bracket

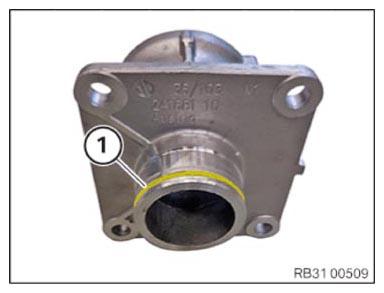

- Coat the sealing ring (1) with front axle differential oil.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

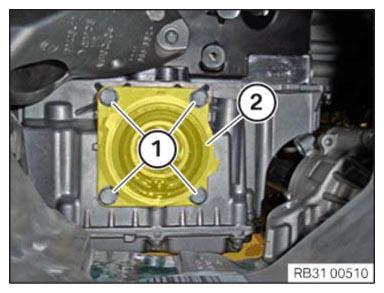

- Position the bearing bracket (2) at the engine oil pan.
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Bearing bracket to engine oil pan. |
| M8 |
Tightening torque |
19 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
