Install the acoustic cover of the oil pan (engine removed)
Install the acoustic cover of the oil pan (engine removed)
- Position acoustic cover.
- Secure the acoustic cover (3) with the expanding rivets (arrows).

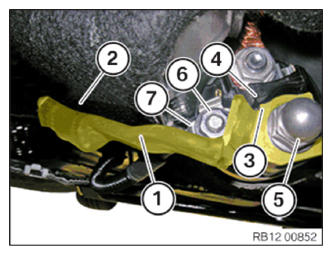

- Connect the positive battery cable (1) to the starter motor.
- Connect the terminal 50 cable to the starter motor.
- Push up positive battery cable (1) to sound insulation (2).
- Bring the anti-twist lock (3) of the positive battery cable (1) on the starter motor to the stop (4).
- Tighten nut (5).
TIGHTENING TORQUE SPECIFICATIONS
| Battery positive lead to starter | ||
| M8 | Tightening torque | 13.5 Nm |
- Insert and install terminal (7) on the starter motor.
- Tighten nut (6).
TIGHTENING TORQUE SPECIFICATIONS
| Terminal 50 to starter motor | ||
| M6 | Tightening torque | 7 Nm |
- Position the positive battery cable (1) against the sound insulation (2).
Otherwise, the positive battery cable (1) may rub against the underbody protection.
