Install the front holder for the intake plenum

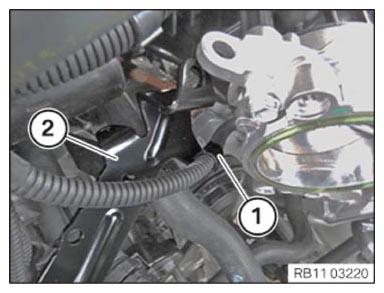

- Position the holder (2) and clip the wiring harness (1) into the holder (2).

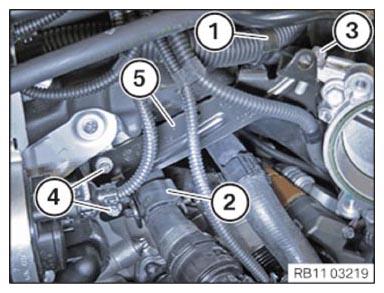

- Position the holder (5) and join the screws (4).
- Join the screw (3).
- Tighten down screws (3) and (4).
TIGHTENING TORQUE SPECIFICATIONS
| Throttle body to holder | ||
| M6X25 | Tightening torque | 8 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Intake plenum holder on engine | ||
| M6x16 | Tightening torque | 10 Nm |
- Clip in the wiring harness (1) and (2) at the holder (5).
