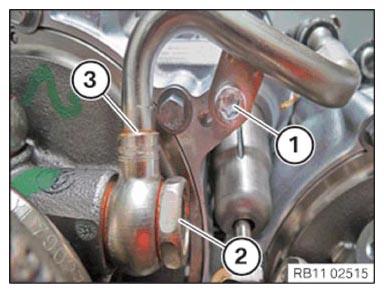

Securing banjo bolt of coolant return line on exhaust turbocharger for cylinders 5 to 8

• Apply the banjo bolt (2) hand-tight.
• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Coolant line to exhaust turbocharger
M6x16	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the sealing rings of the banjo bolt (1).

  Parts:  Sealing ring

• Tighten the banjo bolt (2).

TIGHTENING TORQUE SPECIFICATIONS

Banjo bolt for coolant line on exhaust turbocharger
M14x1.5 Replace sealing rings.	Tightening torque	35 Nm
