Installing the center cowl upper part
- Position the center upper cowling part.

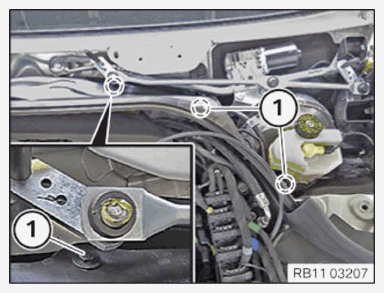

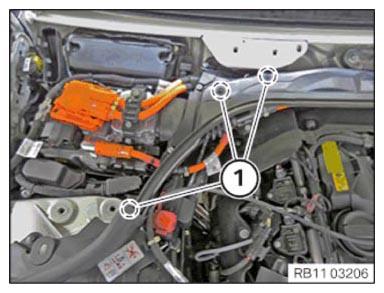

- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Cowl upper part to bottom cowl |
| |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
TIGHTENING TORQUE SPECIFICATIONS
| Cowl upper part to bottom cowl |
| |
Tightening torque |
3 Nm |
