Installing the thermostat on the transmission oil lines

Preparing the thermostat for installation

• Check the gaskets (1).
• Replace damaged seals (1).

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the gaskets (1).
• Replace damaged seals (1).

  Parts:  Seals

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the thermostat (2) in the guides (3).
• Ensure that the locking mechanism (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install transmission oil lines (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install transmission oil lines (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install transmission oil lines (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Version A:

  Insert and install the holder (2).

  Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Version A:

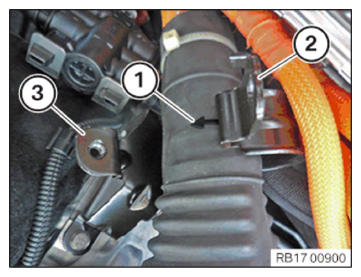

  Position the high-voltage cable (1) on the holder (3) in the direction of the arrow.

  Insert and install the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version A:

  Position holder (2).

  Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

  Fasten the high-voltage cable (2) to the holder.

  Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

  Position holder (2).

  Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in and install the high-voltage connector (2).
• Tighten the screws (1) crosswise up to the high voltage connector (2).
• Tighten screws (1) crosswise.

Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install the heat shield (2).
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
