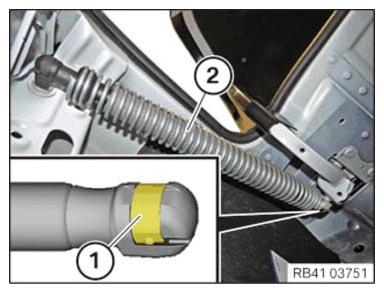

Partially Install the left tension spring for the trunk lid

• Check the clamp (1) is fitted correctly.
• Connect the ball socket of the tension spring for the Trunk lid (2) on the ball pivots.
